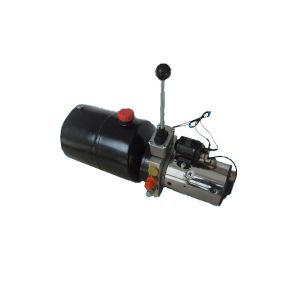

Farm Truck Hydraulic Power Unit Hydraulic Power Systems
Features
1.These are compact-sized and lightweight power packages that use
minimal oil delivered from a small tank.
2.They come with a high-performance gear pump installed.
3.Since a manifold block can be installed directly on the hydraulic
pump as an option, it is easy to configure the hydraulic circuit of
the user's choice by installing a small stack valve.
4.Full return line filter is standard equipment which enables
longer system life.
5.Variety of options are available,including temperature
gauge,magnet,level switch,manifold block,etc.
Technical Date
Voltage Of Electric Motor | Power Of Electric Motor | Pump Displacement
(ml/r) | Maximum Operating Pressure
(Mpa) | Oil Tank Shape | Oil Tank Capacity
(L) | Control Style | Mounting style |
| AC | DC |
AC380V
AC220V
AC415V
AC450V
AC110V | DC12V
DC24V
DC36V
DC48V
DC60V
DC72V | 0.3KW~3KW | 0.75
1
2
3
3.5
4.5
5 | 31.5 | cuboid cylinder | 2; 3; 4; 5; 6; 7; 8; 10; 12; | Manual operation;
DC12V;
DC24V;
AC110V;
AC220V; | Horizontal
Vertical |
Operation and Maintenance Guidelines
Air Bleed
-During initial system startup (and startups after long period of
storage), pump may have difficulty drawing fluid. By pre-installing
an air bleed valve (ABT-03) or by loosing a fitting in the delivery
pipe, air can be bled from the system.
-During air bleed of pump and piping, pump should be run at no
load.
Warm Up
During startup, if viscosity is higher than proper viscosity (54 mm
2 /s), system should be warmed up with pressure less than half of
maximum working pressure until viscosity falls below 54 mm 2 /s.
Hydraulic Fluids
-Maximum operating pressures, maximum speeds,etc. Specifications
may differ according to the hydraulic fluid used.
Mineral Oils
-Please use general industrial use anti-wear fluids.
Fire Resistant Fluids
-Water glycols may be used with us standard type pumps. However
maximum operating pressures, maximum speeds, etc., specifications
will differ from those of mineral oil fluids. Please refer to
specifications of each pump for details.
-Fluorine seals are used with pumps that operate on phosphate ester
fluids. An "F3-" suffix is used to designate such pumps. However
specifications for maximum operating pressures, maximum speeds,
etc., will differ from those of mineral oil fluids.
Hydraulic Fluid Viscosity and Temperature
-Please operate pump with viscosity level within 13~54 mm 2 /s
range. Maximum viscosity allowed is 860 mm2/s (220 mm 2 /s for V20,
V30 Series), but warm up and operation should be done in accordance
with the paragraph on "Warm Up".
-Fluid temperature should be maintained below 65°C.
